ZL-R200A, Universal, Air source heat pump water heater controller, Air-source heat pump hot water unit controller, Lilytech

Sale price $43.60 Regular price $88.00

Universal Air Source Heat Pump Water Heater Controller

Manual link (copy and paste to browser to view and download):

   www.suzhoulily.com/pdf/ZL-R200A_en_V1.0b.pdf


Main Function
Temperature measuring and display      Circulating and antifreeze function
Auto defrost function                                    Auxiliary heating function
Compressor delay production                  Output temperature protection
Water flowing warning                                Sensor default warning

Technical Specification
Sensor: NTC  10K/3470                 Storage temperature:-10~60℃
Setting range:20~60℃                  Humidity:20~85%RH (No Dewing)
Display Range:-40~130℃           Power Supply:220VAC ±10% 50HZ
Working temperature:0~50℃      Load current: Compressor 15A;Heating 8A; Other output 3A

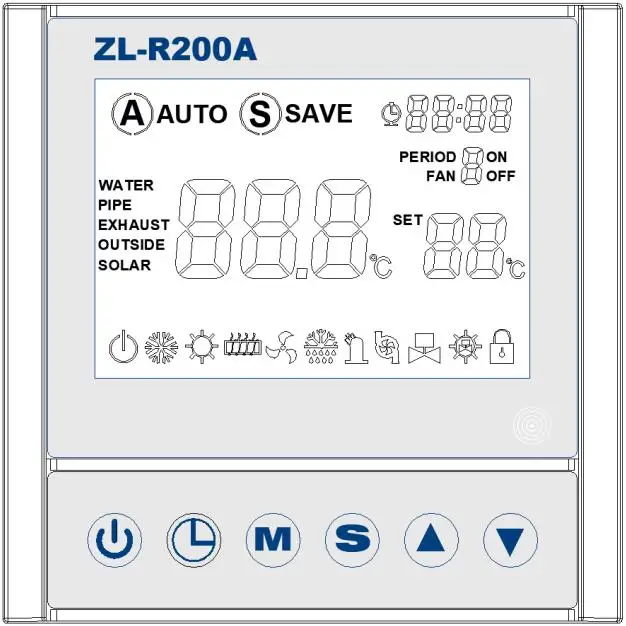

Display instructions
2


Working Code:

No.

Code

Setting function

Setting range

Indication

Default

1

U01

Temperature difference

 2~10℃

Reference temp. control

5

2

U30

Defrost start time

 10~90min



45

3

U31

Defrost start temperature

 -9~0℃



-5

4

U32

Defrost stop temperature

 2~30℃



10

5

U33

Maximum defrost time

 2~15 min



8

6

U34

Defrost four-way valve mode

 0~1

0:heat off, defrost on

1:heat on, defrost off

0

7

U50

Exhaust protection temperature

 50~125℃



110

8

U51

High low pressure warning mode

 0~2

0:Disable

1:on, off warning

2:off, on warning

0

9

U52

Flowing switch code

 0~2

0:Disable

1:on

2:off

0

10

U80

Auto restart function

0~1

0:off;1:off

0

11

U81

Lock parameters setting

 0~1

0:off;1:on

0

12

U90

passwords

 00~99



11
